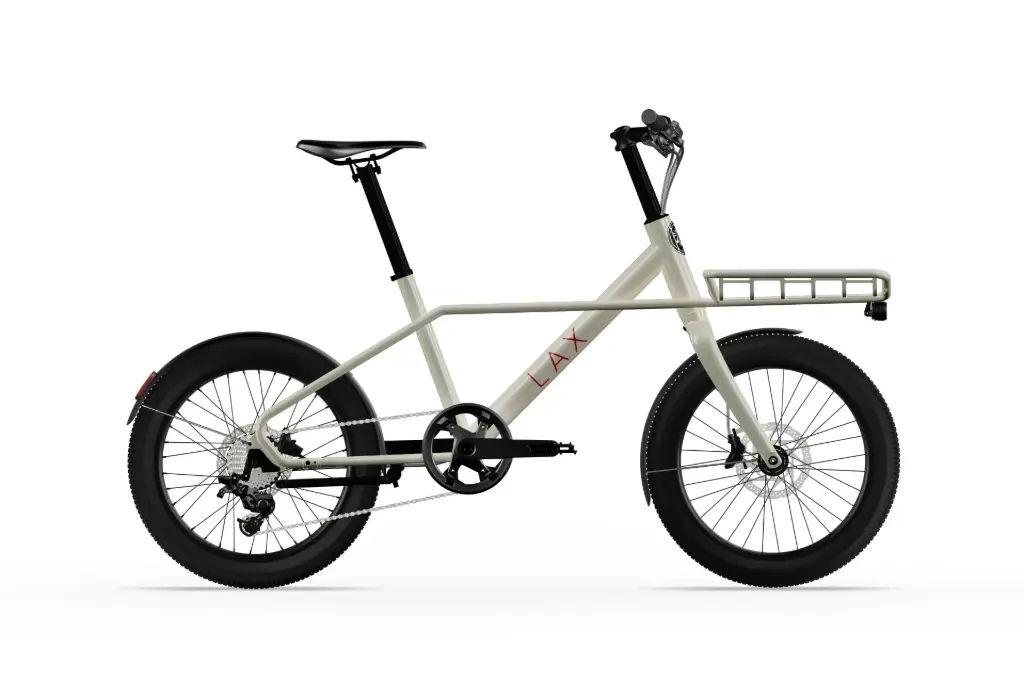

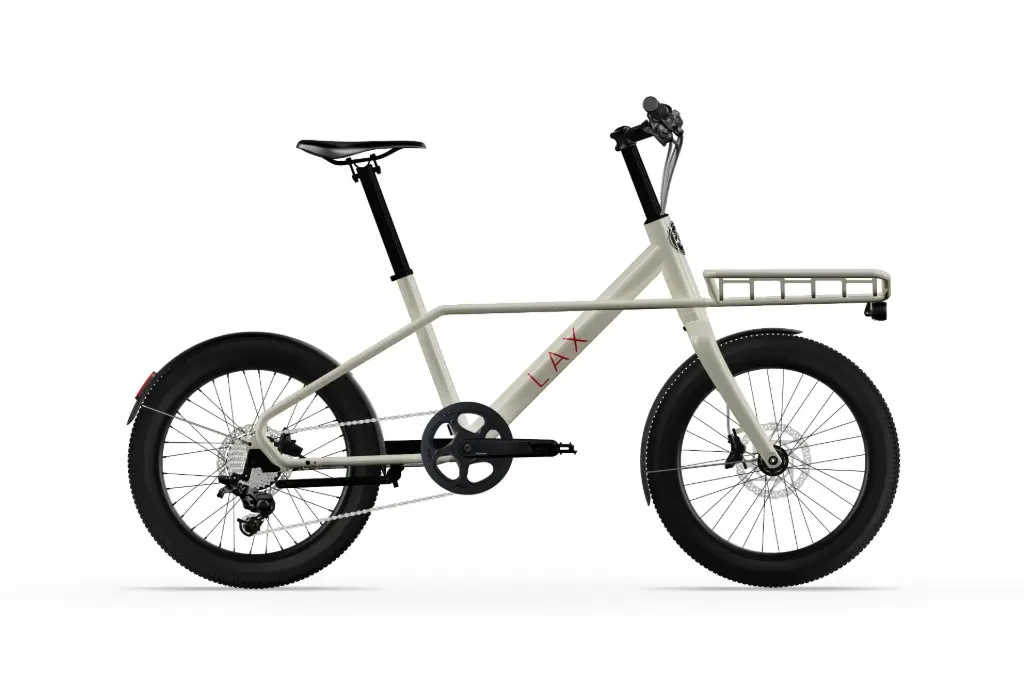

E-BIKE
The multi-utility bike with motor adapts flexibly to your everyday life. Just as agile as the muscle version but even faster on the road. At less than 20 kg, it is still one of the lightest cargo bikes on the market.
In addition to the built-in battery, a range extender in the form of an additional battery can be retrofitted. This can be attached to the rear of the seat tube.
Components
Component | Type |
| Frameset Motor |
LAX 55 Frameset (frame + front basket 25CrMo4-steel, fork aluminium 6061) Hyena Hinterrad-Nabenmotor 40Nm, 250W |
| Battery | Intube battery 36V, 250Wh, 7Ah |
| Front brake | Shimano BR-MT420 4-piston |
| Rear brake | Shimano BR-MT410 2-piston |
| Rear derailleur | Shimano Zee RD-M640 10x |
| Stem | Aluminium black |
| Seat post | Aluminium black |
| Grips | Ergon GXR Circular |
| Handlebars | Aluminium black |
| Crankset | Shimano 170mm |
| Bottom bracket | Hyena inkl. Dual Torque Sensor |
| Headset | Internal Routing IS52/28.6 IS52/40 |
| Saddle | Ergon ST10 |
| Tires | Schwalbe Big Apple 20x2.15 |
| Rims Hub |
Kinlin MX8 Shimano |
| Bike stand | LAX Lite Double Kickstand |
| Pedals | SHIMANO PD-EF102 |
| Mudguards | Aluminium black |
Light | Supernova Mini 2 (front), Supernova TL3 Z (back) |
