LAX ONE
E-BIKE
Extra Power
Extra Power The LAX ONE E-BIKE delivers smooth motor support and a ride that feels totally natural. With the battery hidden inside the frame, it rides like a sports bike – and looks like one too.
Motor
Trotz seiner kompakten Größe liefert der Nabenmotor 40 Nm Drehmoment ohne Getriebe- und Kraftübertragungsverluste.
Battery
The battery, discreetly placed in the down tube, is the perfect match for the minimalist LAX ONE E-BIKE. Its low weight keeps the ride light, while the 250 Wh capacity makes it ideal for everyday use.
Range Extender
An optional second battery – the Range Extender – can be added when needed. It fits right into the bottle cage and gives your LAX E-BIKE an extra 160 Wh of range.
Extra Power
The LAX ONE E-BIKE is a great bike that's got a motor to help you out and it's really smooth to ride. The battery is built into the frame so that the bike looks sporty but doesn't look like an E-BIKE.
Motor
Despite its compact size, the hub motor delivers 40 Nm of torque without any gear or power transmission losses.
Range Extender
An optional second battery – the Range Extender – can be added when needed. It fits right into the bottle cage and gives your LAX E-BIKE an extra 160 Wh of range.
Battery
The battery, discreetly placed in the down tube, is the perfect match for the minimalist LAX ONE E-BIKE. Its low weight keeps the ride light, while the 250 Wh capacity makes it ideal for everyday use.
Drive System
The state-of-the-art drivetrain system uses a torque sensor to capture various signals (including pedal torque, cadence, speed, and motor feedback) and sends data to the system controller. An algorithm ensures that the communication between the sensor, controller, and motor responds to real-time conditions, allowing the drivetrain system to provide precise, corresponding assistance.
Drive System
The state-of-the-art drivetrain system uses a torque sensor to capture various signals (including pedal torque, cadence, speed, and motor feedback) and sends data to the system controller. An algorithm ensures that the communication between the sensor, controller, and motor responds to real-time conditions, allowing the drivetrain system to provide precise, corresponding assistance.
Display
The intuitive display shows battery status, riding modes, speed, and distance traveled. You can also control the lights and activate push assist directly from the display, plus charge your phone while you ride.
Display
The intuitive display shows battery status, riding modes, speed, and distance traveled. You can also control the lights and activate push assist directly from the display, plus charge your phone while you ride.
Hyena Rider Assistant App
You can adapt the motor support even more precisely to your needs using Bluetooth and the Hyena app. You can choose from 15 different riding info options, like current speed, average speed, mileage and range, to see on the dashboard.
Hyena Rider Assistant App
You can adapt the motor support even more precisely to your needs using Bluetooth and the Hyena app. You can choose from 15 different riding info options, like current speed, average speed, mileage and range, to see on the dashboard.
E-BIKE Lighting
The electric lighting system is a real highlight. The Supernova Mini 2 at the front with 100 lumens and the Supernova TL3Z at the rear make sure you've got the best visibility. The tough waterproof housing means it'll last, and the manufacturer's got your back with a five-year guarantee.
E-BIKE Lighting
The electric lighting system is a real highlight. The Supernova Mini 2 at the front with 100 lumens and the Supernova TL3Z at the rear make sure you've got the best visibility. The tough waterproof housing means it'll last, and the manufacturer's got your back with a five-year guarantee.
Technische Daten
Einheitsgröße | mm |
|---|---|
| Sitzhöhe (A) | 490 - 850 |
| Top tube length (B) | 567 |
| Radstand (C) | 1075 |
| Gesamtlänge (D) | 1600 |
| Standover height (E) | 570 |
| Korblänge (F) | 350 innen |

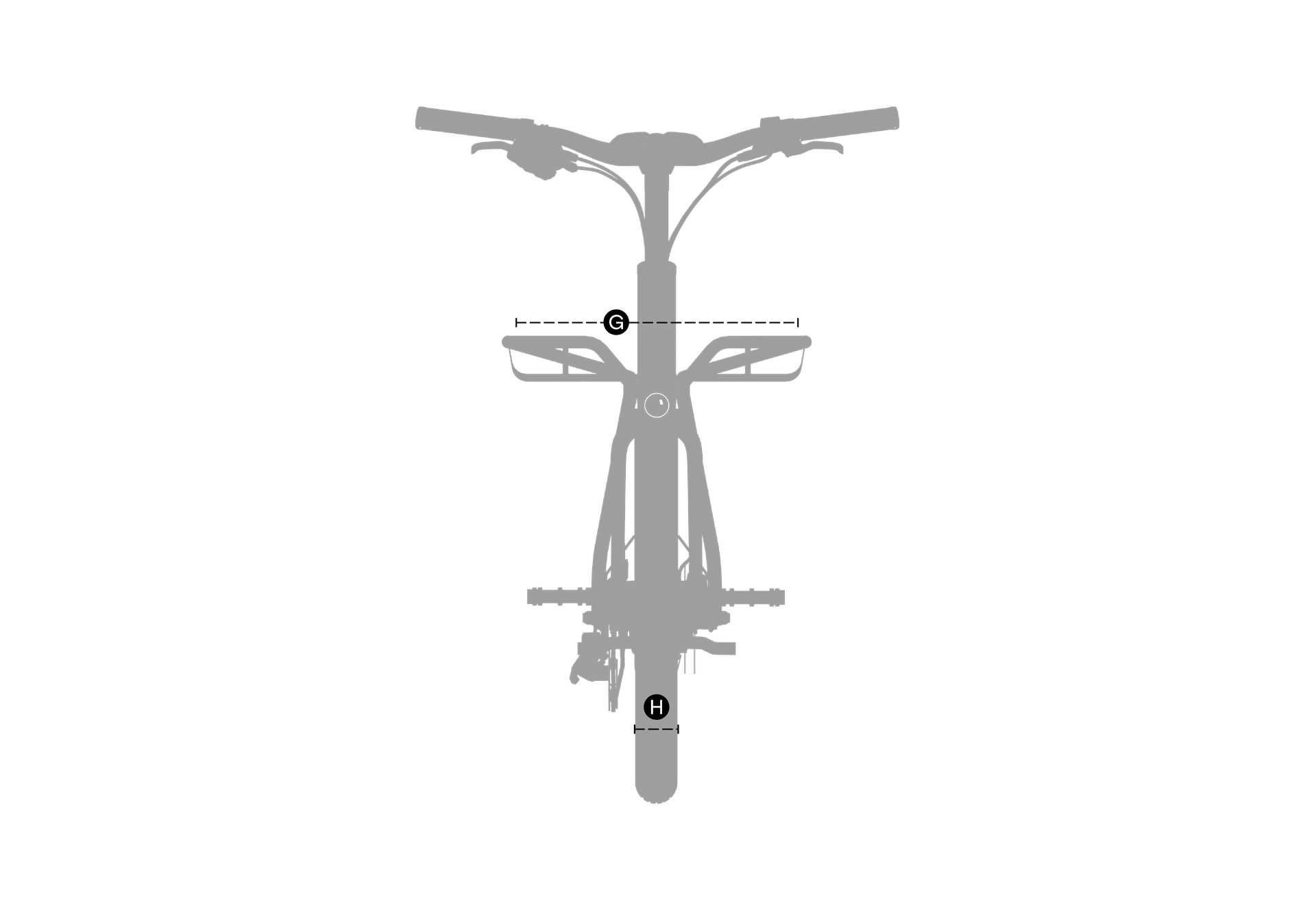

| Korbbreite (G) | 405 innen |
| Tire width (H) | 30 -60 |
Bauteil | Typ |
| Frameset | LAX 55 Frameset (Rahmen + Frontkorb aus 25CrMo4-Stahl, Gabel aus Aluminium 6061) |
Motor | Hyena Hinterrad-Nabenmotor 40Nm, 250W |
| Akku | Hyena Intube Batterie 36V, 250Wh, 7Ah |
| Bremse vorne | Shimano BR-MT420 4-Kolben |
| Bremse hinten | Shimano BR-MT410 2-Kolben |
| Schaltwerk | Shimano Zee RD-M640 10-fach |
| Vorbau | Aluminium schwarz |
| Sattelstütze | Aluminium schwarz |
| Griffe | Ergon GXR Circular |
| Lenker | Aluminium schwarz |
| Kurbelsatz | Shimano 170mm |
| Tretlager | Hyena inkl. Dual Torque Sensor |
| Steuersatz | Internal Routing IS52/28.6 IS52/40 |
| Sattel | Ergon ST10 Gel |
| Reifen | Schwalbe Big Apple 20x2.15 |
| Felgen Nabe | Kinlin MX8 Shimano |
| Fahrradständer | LAX Lite Double Kickstand |
| Pedale | SHIMANO PD-EF202 |
| Schutzbleche | Aluminium schwarz |
Licht | Supernova Mini 2 (vorne), Supernova TL3 Z (hinten) |
Technische Daten
Einheitsgröße | mm |
|---|---|
| Sitzhöhe (A) | 490 - 850 |
| Oberrohrlänge (B) | 567 |
| Radstand (C) | 1075 |
| Gesamtlänge (D) | 1600 |
| Überstandshöhe (E) | 570 |
| Korblänge (F) | 350 innen |
| Korbbreite (G) | 405 innen |
| Reifenbreite (H) | 30 - 60 |
Bauteil | Typ |
| Frameset | LAX 55 Frameset (Rahmen + Frontkorb aus 25CrMo4-Stahl, Gabel aus Aluminium 6061) |
Motor | Hyena Hinterrad-Nabenmotor 40Nm, 250W |
| Akku | Hyena Intube Batterie 36V, 250Wh, 7Ah |
| Bremse vorne | Shimano BR-MT420 4-Kolben |
| Bremse hinten | Shimano BR-MT410 2-Kolben |
| Schalt- werk | Shimano Zee RD-M640 10-fach |
| Vorbau | Aluminium schwarz |
| Sattel- stütze | Aluminium schwarz |
| Griffe | Ergon GXR Circular |
| Lenker | Aluminium schwarz |
| Kurbelsatz | Shimano 170mm |
| Tretlager | Hyena inkl. Dual Torque Sensor |
| Steuersatz | Internal Routing IS52/28.6 IS52/40 |
| Sattel | Ergon ST10 Gel |
| Reifen | Schwalbe Big Apple 20x2.15 |
| Felgen Nabe | Kinlin MX8 Shimano |
| Fahrrad- ständer | LAX Lite Double Kickstand |
| Pedale | SHIMANO PD-EF202 |
| Schutz- bleche | Aluminium schwarz |
Licht | Supernova Mini 2 (vorne), Supernova TL3 Z (hinten) |

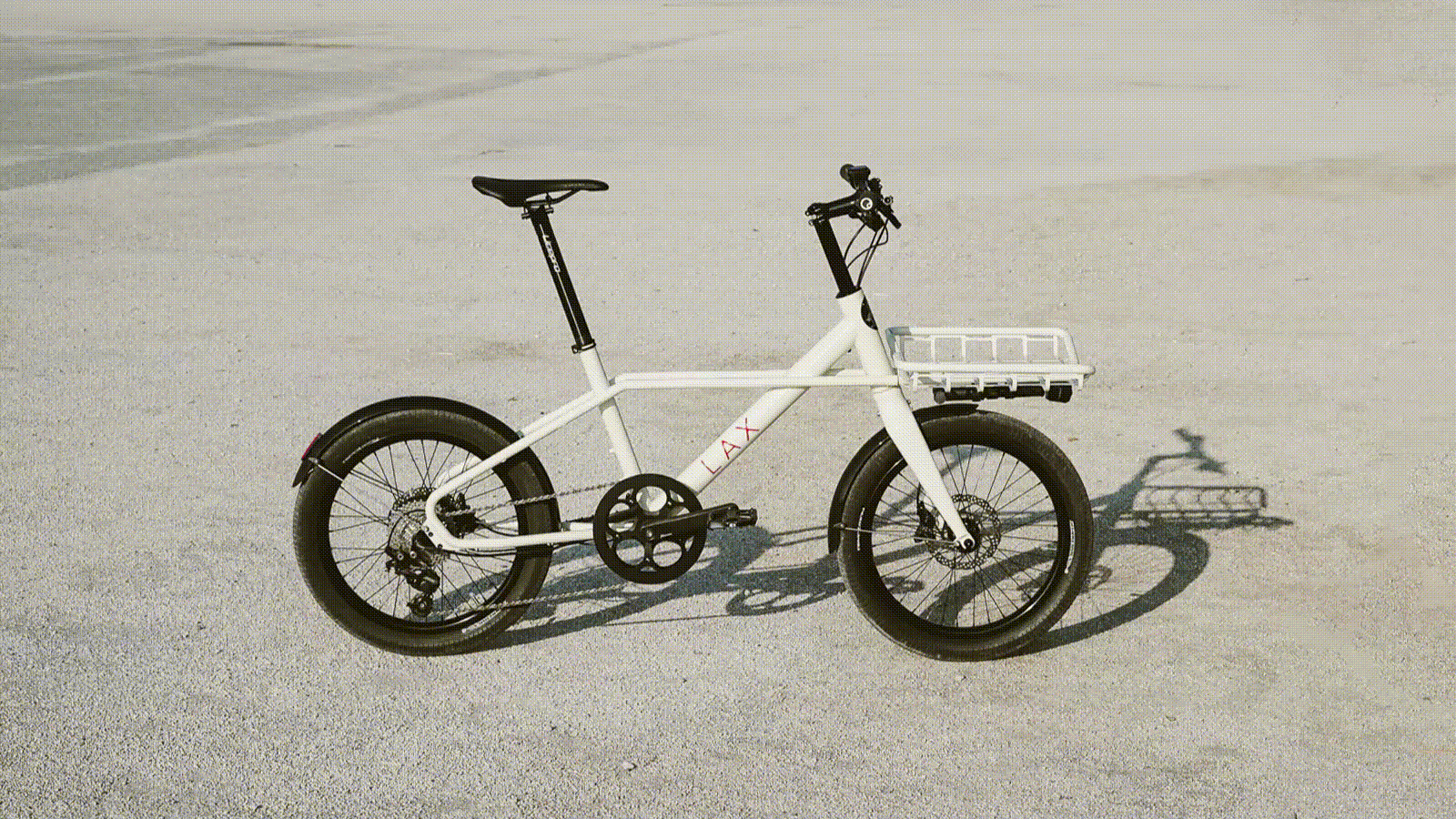

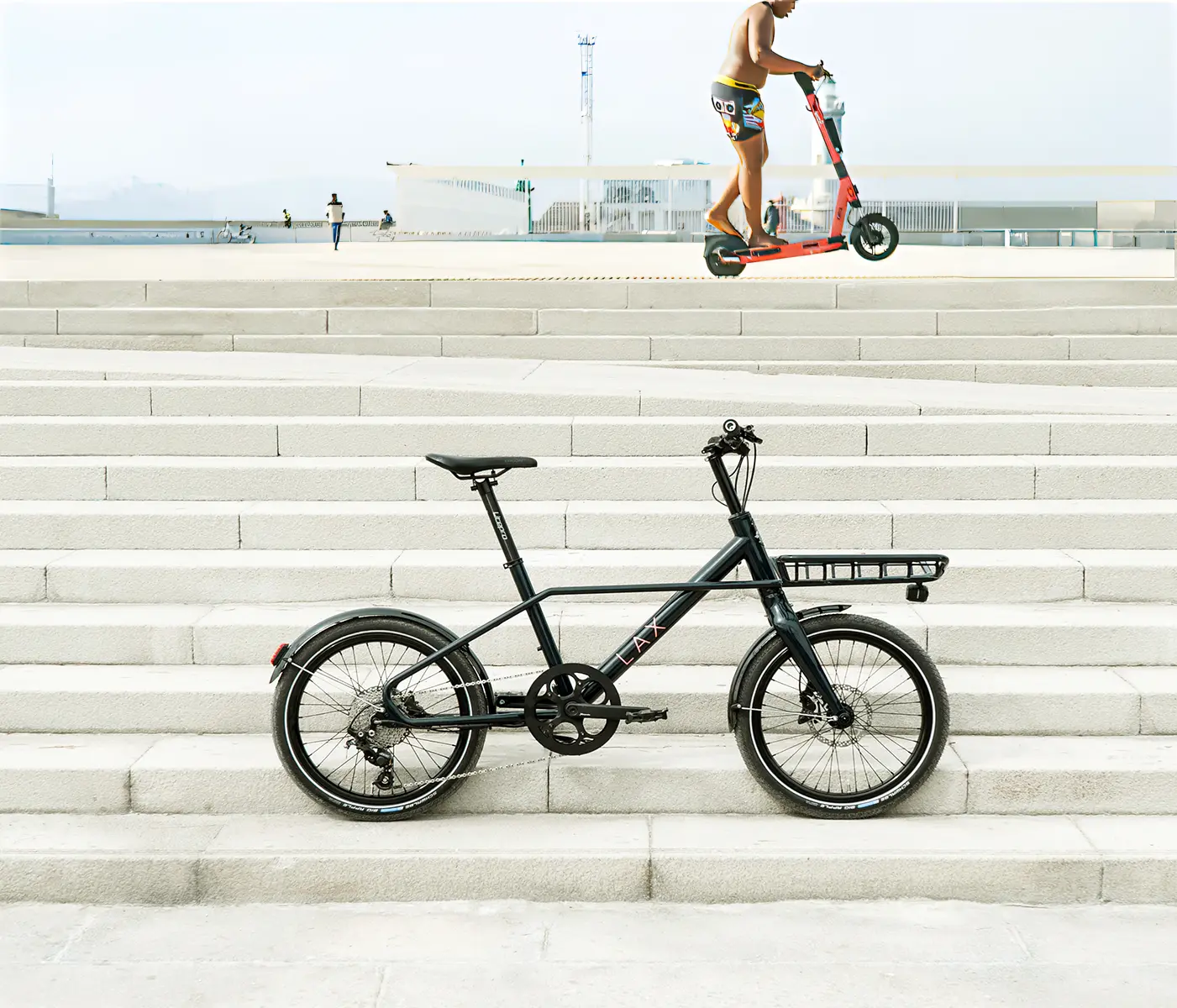

LAX ONE
MUSCLE BIKE
Maximum Power Transfer
The unisize frame design ensures optimal power transfer, allowing you to reach maximum speed without motor support.
Quick and agile
Thanks to its low weight and responsive handling, you’ll navigate tight corners and execute fast overtakes with ease, all without the motor. The short wheelbase ensures sharp, direct steering, while the optimized riding position allows for efficient power transfer to the pedals.
Lightweight
Weighing in at under 15 kg, the LAX ONE MUSCLE BIKE is a true lightweight. So you can get where you're going even faster – whether it's down to the subway or up to your living room.
Spot on
The lighting system with hub dynamo ensures reliable illumination for every ride. The E3 Pure 3 front light provides even road lighting, while the E3 TAIL LIGHT 2 rear light keeps you visible from behind.
Maximum Power Transfer
The unisize frame design ensures optimal power transfer, allowing you to reach maximum speed even without motor support.
Quick and agile
Thanks to its low weight and responsive handling, you’ll navigate tight corners and execute fast overtakes with ease, all without the motor. The short wheelbase ensures sharp, direct steering, while the optimized riding position allows for efficient power transfer to the pedals.
Lightweight
Weighing in at under 15 kg, the LAX ONE MUSCLE BIKE is a true lightweight. So you can get where you're going even faster – whether it's down to the subway or up to your living room.
Spot on
Die Lichtanlage mit Nabendynamo garantiert zuverlässige Beleuchtung für jede Fahrt. Das LED-Frontlicht E3 Pure 3 sorgt für eine gleichmäßige Ausleuchtung der Straße, während das E3 Tail Light 2 Rücklicht dafür sorgt, dass du auch von hinten gut sichtbar bist.

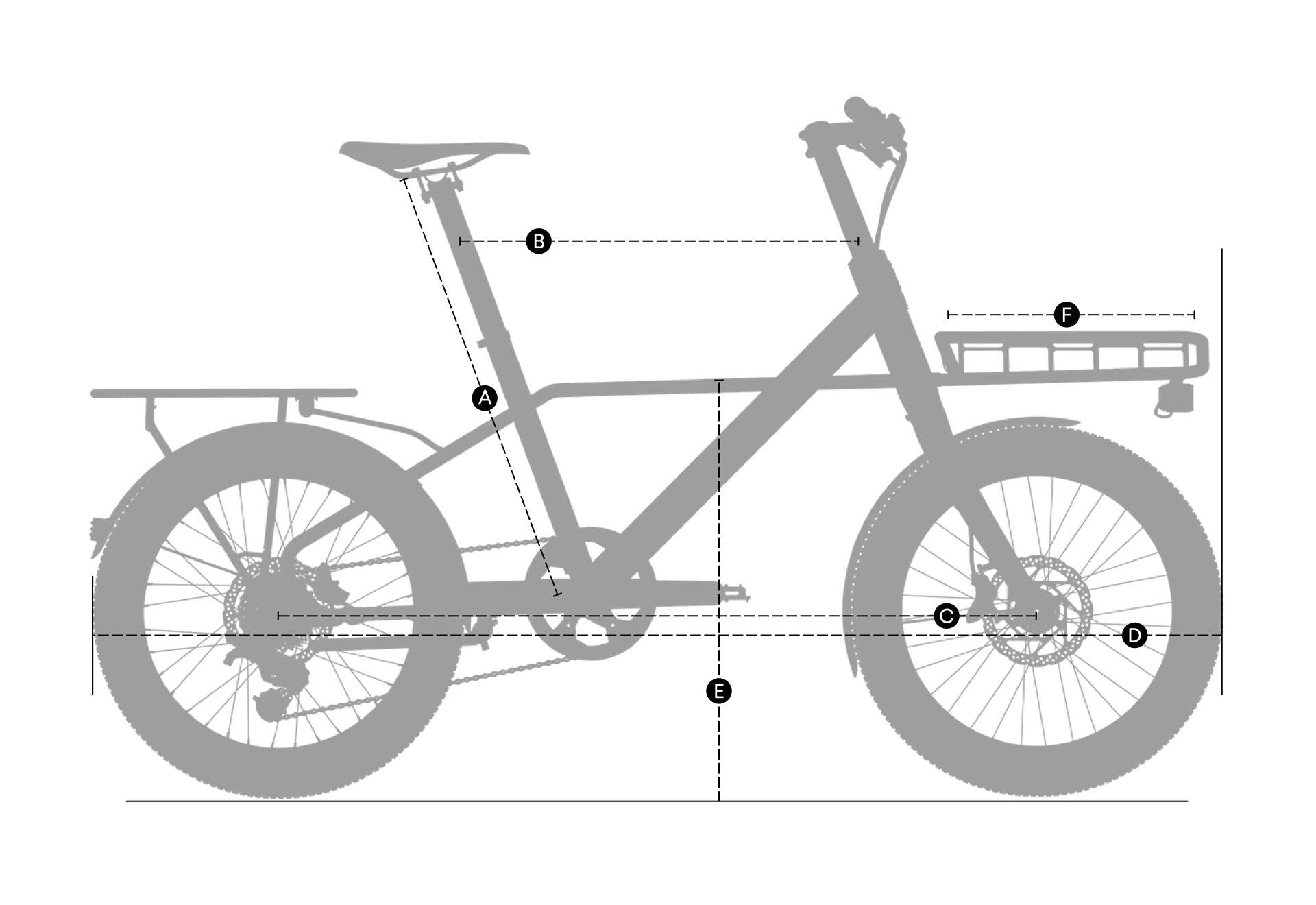

Technische Daten
Einheitsgröße | mm |
|---|---|
| Sitzhöhe (A) | 490 - 850 |
| Oberrohrlänge (B) | 567 |
| Radstand (C) | 1075 |
| Gesamtlänge (D) | 1600 |
| Überstandshöhe (E) | 570 |
| Korblänge (F) | 350 innen |
| Korbbreite (G) | 405 innen |
| Tire width (H) | 30 -60 |
Bauteil | Typ |
| Frameset Bremse vorne | LAX 55 Frameset (Rahmen + Frontkorb aus 25CrMo4-Stahl, Gabel aus Aluminium 6061) Shimano BR-MT420 4-Kolben |
| Bremse hinten | Shimano BR-MT420 2-Kolben |
| Schaltung | Shimano Zee RD-M640 10-fach |
| Vorbau | Aluminium schwarz |
| Sattel- stütze | Aluminium schwarz |
| Griffe | Ergon GXR Circular |
| Lenker | Aluminium schwarz |
| Kurbelsatz | Shimano CUES FC-U6000 |
| Tretlager | Prestine T47 24mm |
| Steuersatz | Internal Routing IS52/28.6 IS52/40 |
| Sattel | Ergon ST10 Gel |
| Reifen | Schwalbe Big Apple 20x2.0 |
| Felgen Naben | Kinlin MX8 Shimano |
| Fahrrad- ständer | LAX Lite Double Kickstand |
| Pedale | SHIMANO PD-EF202 |
| Schutz- bleche | Aluminium schwarz |
Licht | Supernova E3 PURE 3 (vorne), Supernova E3 Tail light 2 (hinten) |
Technische Daten
Einheitsgröße | mm |
|---|---|
| Sitzhöhe (A) | 490 - 850 |
| Top tube length (B) | 567 |
| Radstand (C) | 1075 |
| Gesamtlänge (D) | 1600 |
| Standover height (E) | 570 |
| Korblänge (F) | 350 innen |
| Korbbreite (G) | 405 innen |
| Tire width (H) | 30 -60 |
Bauteil | Typ |
| Frameset Bremse vorne | LAX 55 Frameset (Rahmen + Frontkorb aus 25CrMo4-Stahl, Gabel aus Aluminium 6061) Shimano BR-MT420 4-Kolben |
| Bremse hinten | Shimano BR-MT420 2-Kolben |
| Schaltung | Shimano Zee RD-M640 10-fach |
| Vorbau | Aluminium schwarz |
| Sattelstütze | Aluminium schwarz |
| Griffe | Ergon GXR Circular |
| Lenker | Aluminium schwarz |
| Kurbelsatz | Shimano CUES FC-U6000 |
| Tretlager | Prestine T47 24mm |
| Steuersatz | Internal Routing IS52/28.6 IS52/40 |
| Sattel | Ergon ST10 Gel |
| Reifen | Schwalbe Big Apple 20x2.0 |
| Felgen Naben | Kinlin MX8 Shimano |
| Fahrradständer | LAX Lite Double Kickstand |
| Pedale | SHIMANO PD-EF202 |
| Schutzbleche | Aluminium schwarz |
Licht | Supernova E3 PURE 3 (vorne), Supernova E3 Tail light 2 (hinten) |
LAX ONE
BELT DRIVE
For long-lasting and carefree driving pleasure
This setup not only delivers a dynamic riding experience but also ensures exceptional reliability under demanding conditions. It features a belt drive system made up of a high-quality Gates crankset and Gates belt. Perfect for riders who value performance and durability.
Clean
The belt drive doesn't need any lubrication or chain cleaner, so it's a pretty clean option. You can just wash it with water when it gets really dirty. It's also really quiet and smooth.
Low Maintenance
The high-strength combination of durable polyurethane (PU) and carbon fibers ensures minimal stretch, low wear, and a long lifespan of up to 10,000 km.
Weatherproof
The belt is highly weather-resistant and built to withstand the elements. The hub’s closed design also offers optimal protection against dirt, further reducing maintenance requirements.

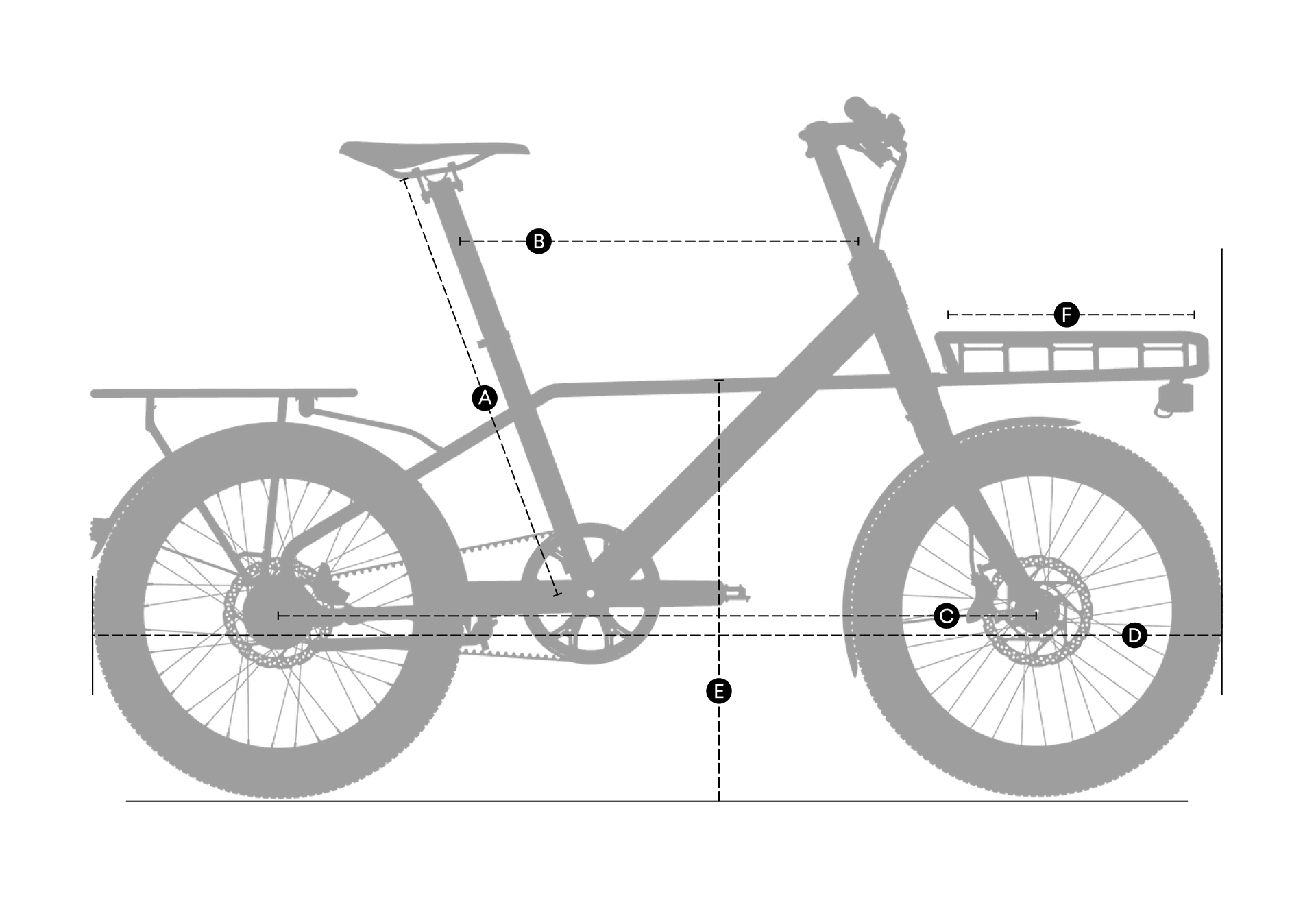

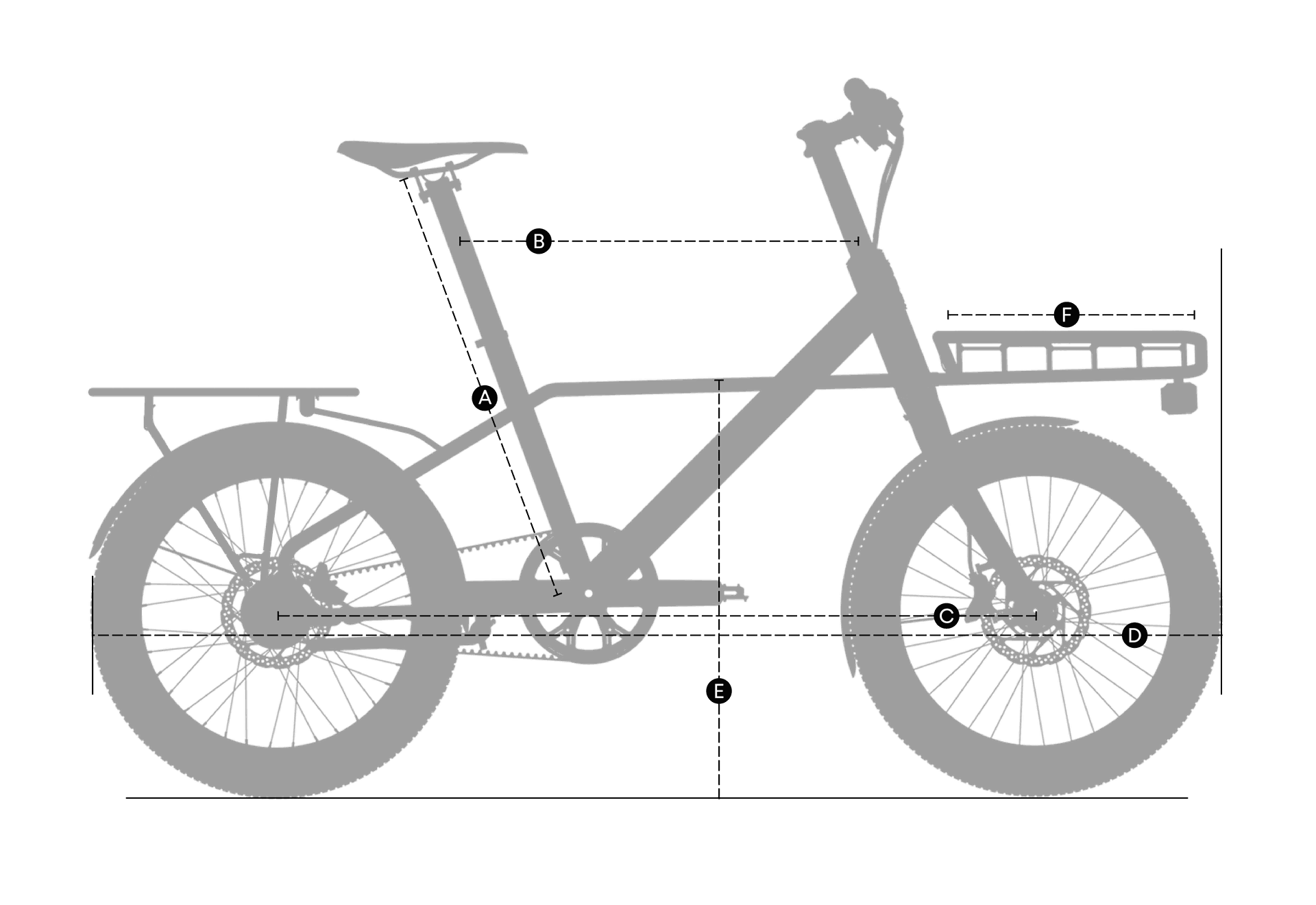

Technische Daten
Einheitsgröße | mm |
|---|---|
| Sitzhöhe (A) | 490 - 850 |
| Top tube length (B) | 567 |
| Radstand (C) | 1075 |
| Gesamtlänge (D) | 1600 |
| Standover height (E) | 570 |
| Korblänge (F) | 350 innen |
| Korbbreite (G) | 405 innen |
| Tire width (H) | 30 -60 |
Bauteil | Typ |
| Frameset Bremse vorne | LAX 55 Frameset (Rahmen + Frontkorb aus 25CrMo4-Stahl, Gabel aus Aluminium 6061) Shimano BR-MT420 4-Kolben |
| Bremse hinten | Shimano BR-MT410 2-Kolben |
| Schaltung | Shimano Alfine 8-fach / 1-fach |
| Vorbau | Aluminium schwarz |
| Sattelstütze | Aluminium schwarz |
| Griffe | Ergon GXR Circular |
| Lenker | Aluminium schwarz |
| Antrieb | Gates - Kurbel S301 55T, Riemenscheibe 22T, Riemen CDX 120T |
| Tretlager | Prestine T47 24mm |
| Steuersatz | Internal Routing IS52/28.6 IS52/40 |
| Sattel | Ergon ST10 Gel |
| Reifen | Schwalbe Big Apple 20x2.15 |
| Felgen Nabe | Kinlin MX8 Shimano |
| Fahrradständer | LAX Lite Double Kickstand |
| Pedale | SHIMANO PD-EF202 |
| Schutzbleche | Aluminium schwarz |
Licht (Dynamo) | Supernova E3 PURE 3 (vorne), Supernova E3 Tail light 2 (hinten) |
For long-lasting and carefree driving pleasure
This setup not only delivers a dynamic riding experience but also ensures exceptional reliability under demanding conditions. It features a belt drive system made up of a high-quality Gates crankset and Gates belt. Perfect for riders who value performance and durability.
Low Maintenance
The high-strength combination of durable polyurethane (PU) and carbon fibers ensures minimal stretch, low wear, and a long lifespan of up to 10,000 km.
Weatherproof
The belt is highly weather-resistant and built to withstand the elements. The hub’s closed design also offers optimal protection against dirt, further reducing maintenance requirements.
Clean
The belt drive doesn't need any lubrication or chain cleaner, so it's a pretty clean option. You can just wash it with water when it gets really dirty. It's also really quiet and smooth.
Technische Daten
Einheitsgröße | mm |
|---|---|
| Sitzhöhe (A) | 490 - 850 |
| Oberrohrlänge (B) | 567 |
| Radstand (C) | 1075 |
| Gesamtlänge (D) | 1600 |
| Überstandshöhe (E) | 570 |
| Korblänge (F) | 350 innen |
| Korbbreite (G) | 405 innen |
| Reifenbreite (H) | 30 - 60 |
Bauteil | Typ |
| Frameset Bremse vorne | LAX 55 Frameset (Rahmen + Frontkorb aus 25CrMo4-Stahl, Gabel aus Aluminium 6061) Shimano BR-MT420 4-Kolben |
| Bremse hinten | Shimano BR-MT410 2-Kolben |
| Schaltung | Shimano Alfine 8-fach / 1-fach |
| Vorbau | Aluminium schwarz |
| Sattel- stütze | Aluminium schwarz |
| Griffe | Ergon GXR Circular |
| Lenker | Aluminium schwarz |
| Antrieb | Gates - Kurbel S301 55T, Riemenscheibe 22T, Riemen CDX 120T |
| Tretlager | Prestine T47 24mm |
| Steuer-satz | Internal Routing IS52/28.6 IS52/40 |
| Sattel | Ergon ST10 Gel |
| Reifen | Schwalbe Big Apple 20x2.15 |
| Felgen Nabe | Kinlin MX8 Shimano |
| Fahrrad- ständer | LAX Lite Double Kickstand |
| Pedale | SHIMANO PD-EF202 |
| Schutz- bleche | Aluminium schwarz |
Licht (Dynamo) | Supernova E3 PURE 3 (vorne), Supernova E3 Tail light 2 (hinten) |

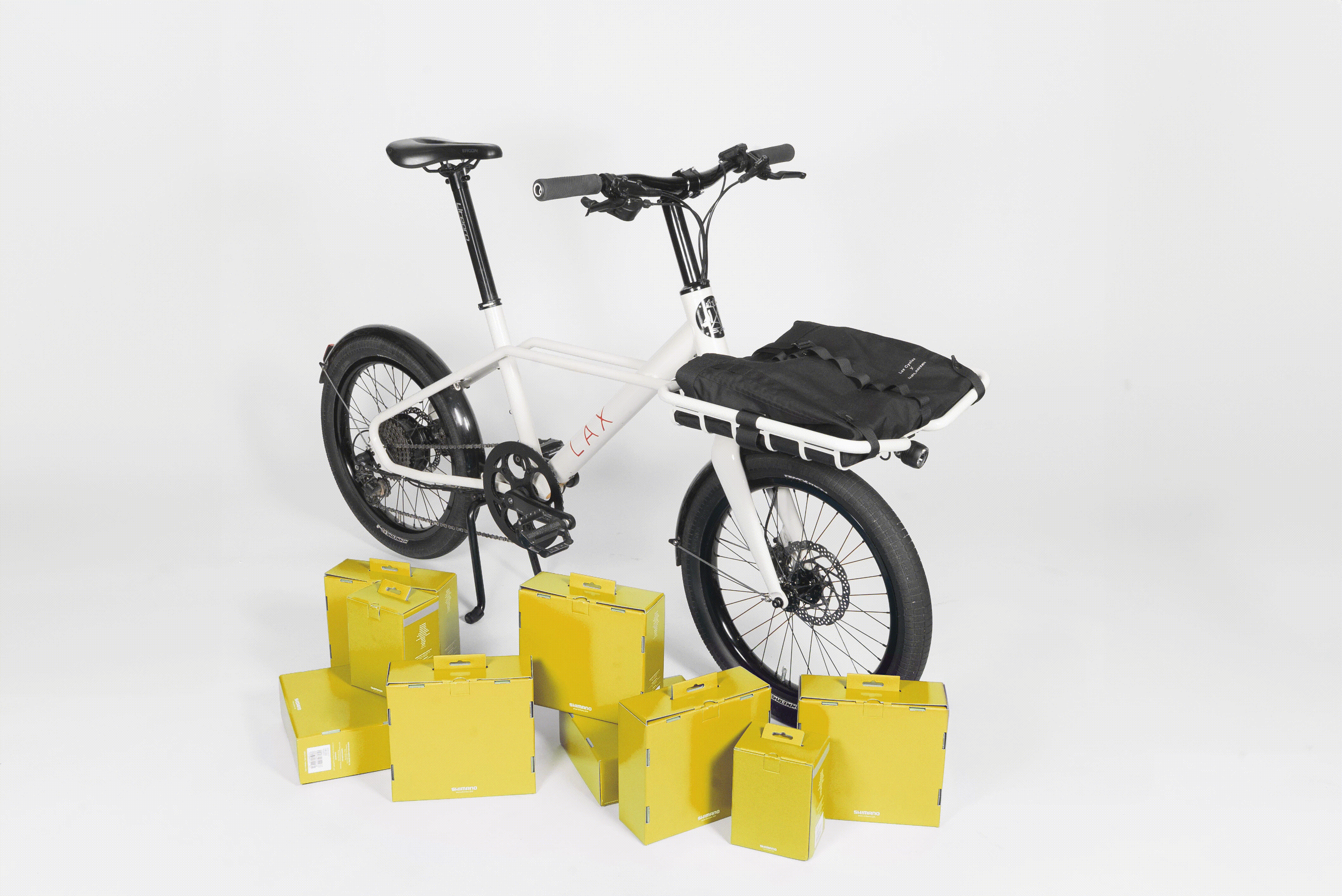

LAX BAG
Roomy Design
The LAX Bag is great for expanding your storage space and making transportation easier. With a capacity of 55 liters, it's a total game changer for your daily cargo. A sturdy insert will be available soon to turn the bag into a LAX Doggy Bag, so your four-legged friends can also travel safely.
Roomy Design
The LAX Bag is great for expanding your storage space and making transportation easier. With a capacity of 55 liters, it's a total game changer for your daily cargo. A sturdy insert will be available soon to turn the bag into a LAX Doggy Bag, so your four-legged friends can also travel safely.
Material
The LAX Bag is made from recycled polyester, which is really tear-resistant and stable. It's PFC-free and water-repellent, but you can still fold it up and stow it away easily. It's lightweight, so you can fit loads of stuff in without adding extra weight.
Belt System
It's attached to the front basket with a simple strap system. This keeps the bag and its contents secure during the ride.
Material
The LAX Bag is made from recycled polyester, which is really tear-resistant and stable. It's PFC-free and water-repellent, but you can still fold it up and stow it away easily. It's lightweight, so you can fit loads of stuff in without adding extra weight.
