LAX ONE
E-Bike
Extra Power
The Lax One e-bike gives you the best of both worlds, with a reliable motor and a natural riding experience. The battery is built into the frame so that the bike looks sporty and doesn't even look like an e-bike.
Motor
Despite its compact size, the hub motor delivers 40 Nm of torque without any gear or power transmission losses.
Battery
The battery, tucked away in the down tube, is the perfect match for the Lax One e-bike, which is designed with a minimalist vibe. It's pretty light, so it won't add to the weight of the bike, and it's got 250Wh of power, so it's perfect for everyday use.
Range Extender
You can also add a second battery, called a range extender, if you need more power. Just stick it in the bottle cage and you can add an extra 160 Wh to the Lax e-bike's range.
Extra Power
The Lax One e-bike gives you the best of both worlds, with a reliable motor and a natural riding experience. The battery is built into the frame so that the bike looks sporty and doesn't even look like an e-bike.
Motor
Despite its compact size, the hub motor delivers 40 Nm of torque without any gear or power transmission losses.
Range Extender
You can also add a second battery, called a range extender, if you need more power. Just stick it in the bottle cage and you can add an extra 160 Wh to the Lax e-bike's range.
Battery
The battery, tucked away in the down tube, is the perfect match for the Lax One e-bike, which is designed with a minimalist vibe. It's pretty light, so it won't add to the weight of the bike, and it's got 250Wh of power, so it's perfect for everyday use.
Drive system
The state-of-the-art drive system uses a torque sensor to detect various signals (including pedal torque, cadence, speed and motor feedback) and sends data to the system controller. An algorithm ensures that the communication between the sensor, the controller and the motor responds to actual conditions so that the drive system can provide precise, appropriate assistance.
Drive system
The state-of-the-art drive system uses a torque sensor to detect various signals (including pedal torque, cadence, speed and motor feedback) and sends data to the system controller. An algorithm ensures that the communication between the sensor, the controller and the motor responds to actual conditions so that the drive system can provide precise, appropriate assistance.
Display
The display is really intuitive, showing you the battery status, riding modes, speed and kilometres ridden. You can also activate the light and push assistance here. You can also charge your phone from the bike.
Display
The display is really intuitive, showing you the battery status, riding modes, speed and kilometres ridden. You can also activate the light and push assistance here. You can also charge your phone from the bike.
Hyena Rider Assistant App
You can adapt the motor support even more precisely to your needs using Bluetooth and the Hyena app. You can choose from 15 different riding info options, like current speed, average speed, mileage and range, to see on the dashboard.
Hyena Rider Assistant App
You can adapt the motor support even more precisely to your needs using Bluetooth and the Hyena app. You can choose from 15 different riding info options, like current speed, average speed, mileage and range, to see on the dashboard.
E-bike lighting
The electric lighting system is a real highlight. The Supernova Mini 2 at the front with 100 lumens and the Supernova TL3Z at the rear make sure you've got the best visibility. The tough waterproof housing means it'll last, and the manufacturer's got your back with a five-year guarantee.
E-bike lighting
The electric lighting system is a real highlight. The Supernova Mini 2 at the front with 100 lumens and the Supernova TL3Z at the rear make sure you've got the best visibility. The tough waterproof housing means it'll last, and the manufacturer's got your back with a five-year guarantee.
Technische Daten
Einheitsgröße |
mm |
|---|---|
| Sitzhöhe (A) | 490 - 850 |
| Top tube length (B) | 567 |
| Radstand (C) | 1075 |
| Gesamtlänge (D) | 1600 |
| Standover height (E) | 570 |
| Korblänge (F) | 350 innen |
| Korbbreite (G) | 405 innen |
| Tire width (H) | 30 -60 |
Bauteil |
Typ |
|---|---|
| Frameset | LAX 55 Frameset (Rahmen + Frontkorb aus 25CrMo4-Stahl, Gabel aus Aluminium 6061) |
| Motor | Hyena Hinterrad-Nabenmotor 40Nm, 250W |
| Akku | Hyena Intube Batterie 36V, 250Wh, 7Ah |
| Bremse vorne | Shimano BR-MT420 4-Kolben |
| Bremse hinten | Shimano BR-MT410 2-Kolben |
| Schaltwerk | Shimano Zee RD-M640 10-fach |
| Vorbau | Aluminium schwarz |
| Sattelstütze | Aluminium schwarz |
| Griffe | Ergon GXR Circular |
| Lenker | Aluminium schwarz |
| Kurbelsatz | Shimano 170mm |
| Tretlager | Hyena inkl. Dual Torque Sensor |
| Steuersatz | Internal Routing IS52/28.6 IS52/40 |
| Sattel | Ergon ST10 Gel |
| Reifen | Schwalbe Big Apple 20x2.15 |
| Felgen | Kinlin MX8 |
| Nabe | Shimano |
| Fahrradständer | LAX Lite Double Kickstand |
| Pedale | Shimano PD-EF202 |
| Schutzbleche | Aluminium schwarz |
Technische Daten
Einheitsgröße |
mm |
|---|---|
| Sitzhöhe (A) | 490 - 850 |
| Top tube length (B) | 567 |
| Radstand (C) | 1075 |
| Gesamtlänge (D) | 1600 |
| Standover height (E) | 570 |
| Korblänge (F) | 350 innen |
| Korbbreite (G) | 405 innen |
| Tire width (H) | 30 -60 |
Bauteil |
Typ |
|---|---|
| Frameset | LAX 55 Frameset (Rahmen + Frontkorb aus 25CrMo4-Stahl, Gabel aus Aluminium 6061) |
| Motor | Hyena Hinterrad-Nabenmotor 40Nm, 250W |
| Akku | Hyena Intube Batterie 36V, 250Wh, 7Ah |
| Bremse vorne | Shimano BR-MT420 4-Kolben |
| Bremse hinten | Shimano BR-MT410 2-Kolben |
| Schaltwerk | Shimano Zee RD-M640 10-fach |
| Vorbau | Aluminium schwarz |
| Sattelstütze | Aluminium schwarz |
| Griffe | Ergon GXR Circular |
| Lenker | Aluminium schwarz |
| Kurbelsatz | Shimano 170mm |
| Tretlager | Hyena inkl. Dual Torque Sensor |
| Steuersatz | Internal Routing IS52/28.6 IS52/40 |
| Sattel | Ergon ST10 Gel |
| Reifen | Schwalbe Big Apple 20x2.15 |
| Felgen | Kinlin MX8 |
| Nabe | Shimano |
| Fahrradständer | LAX Lite Double Kickstand |
| Pedale | Shimano PD-EF202 |
| Schutzbleche | Aluminium schwarz |

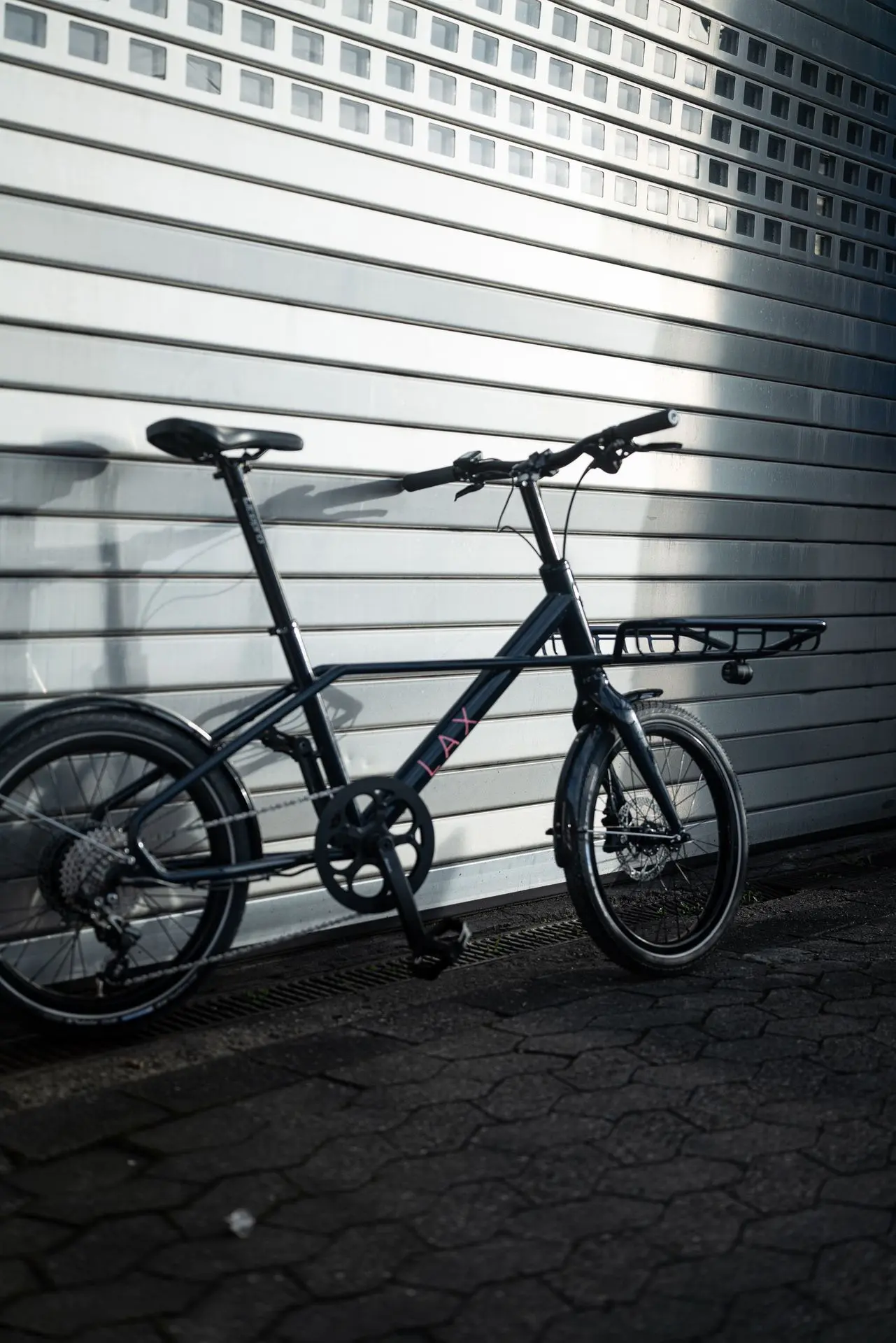

LAX ONE
Muscle Bike
lights on
The lighting system with hub dynamo makes sure you'll be seen on every ride. The E3 Pure 3 LED front light provides even illumination of the road, while the E3 TAIL LIGHT 2 rear light ensures that you are also clearly visible from behind.
Fast and agile
It's really light, so you can handle tight bends and fast overtaking moves, and it's got a motor-free design. The short wheelbase makes it really manoeuvrable, and the seating position is optimised for efficient power transfer to the pedals.
Maximum power transmission
The unisize frame construction makes sure you get the best power transmission, so you can reach maximum speed even without motor support.
Lightweight
The Lax One Muscle Bike is a real lightweight at less than 15 kg. So you can get where you want to go even faster. Whether you're heading to the subway or the living room, this bike's got you covered.
Maximum power transmission
The unisize frame construction makes sure you get the best power transmission, so you can reach maximum speed even without motor support.
Fast and agile
It's really light, so you can handle tight bends and fast overtaking moves, and it's got a motor-free design. The short wheelbase makes it really manoeuvrable, and the seating position is optimised for efficient power transfer to the pedals.
Lightweight
The Lax One Muscle Bike is a real lightweight at less than 15 kg. So you can get where you want to go even faster. Whether you're heading to the subway or the living room, this bike's got you covered.
lights on
The lighting system with hub dynamo makes sure you'll be seen on every ride. The E3 Pure 3 LED front light provides even illumination of the road, while the E3 TAIL LIGHT 2 rear light ensures that you are also clearly visible from behind.
Technische Daten
Einheitsgröße |
mm |
|---|---|
| Sitzhöhe (A) | 490 - 850 |
| Top tube length (B) | 567 |
| Radstand (C) | 1075 |
| Gesamtlänge (D) | 1600 |
| Standover height (E) | 570 |
| Korblänge (F) | 350 innen |
| Korbbreite (G) | 405 innen |
| Tire width (H) | 30 -60 |
Bauteil |
Typ |
|---|---|
| Frameset | LAX 55 Frameset (Rahmen + Frontkorb aus 25CrMo4-Stahl, Gabel aus Aluminium 6061) |
| Bremse vorne | Shimano BR-MT420 4-Kolben |
| Bremse hinten | Shimano BR-MT410 2-Kolben |
| Schaltung | Shimano Zee RD-M640 10-fach |
| Vorbau | Aluminium schwarz |
| Sattelstütze | Aluminium schwarz |
| Griffe | Ergon GXR Circular |
| Lenker | Aluminium schwarz |
| Kurbelsatz | Shimano CUES FC-U6000 |
| Tretlager | Prestine T47 24mm |
| Steuersatz | Internal Routing IS52/28.6 IS52/40 |
| Sattel | Ergon ST10 Gel |
| Reifen | Schwalbe Big Apple 20x2.0 |
| Felgen | Kinlin MX8 |
| Naben | Shimano |
| Fahrradständer | LAX Lite Double Kickstand |
| Pedale | Shimano PD-EF202 |
| Schutzbleche | Aluminium schwarz |
Technische Daten
Einheitsgröße |
mm |
|---|---|
| Sitzhöhe (A) | 490 - 850 |
| Top tube length (B) | 567 |
| Radstand (C) | 1075 |
| Gesamtlänge (D) | 1600 |
| Standover height (E) | 570 |
| Korblänge (F) | 350 innen |
| Korbbreite (G) | 405 innen |
| Tire width (H) | 30 -60 |
Bauteil |
Typ |
|---|---|
| Frameset | LAX 55 Frameset (Rahmen + Frontkorb aus 25CrMo4-Stahl, Gabel aus Aluminium 6061) |
| Bremse vorne | Shimano BR-MT420 4-Kolben |
| Bremse hinten | Shimano BR-MT410 2-Kolben |
| Schaltung | Shimano Zee RD-M640 10-fach |
| Vorbau | Aluminium schwarz |
| Sattelstütze | Aluminium schwarz |
| Griffe | Ergon GXR Circular |
| Lenker | Aluminium schwarz |
| Kurbelsatz | Shimano CUES FC-U6000 |
| Tretlager | Prestine T47 24mm |
| Steuersatz | Internal Routing IS52/28.6 IS52/40 |
| Sattel | Ergon ST10 Gel |
| Reifen | Schwalbe Big Apple 20x2.0 |
| Felgen | Kinlin MX8 |
| Naben | Shimano |
| Fahrradständer | LAX Lite Double Kickstand |
| Pedale | Shimano PD-EF202 |
| Schutzbleche | Aluminium schwarz |
LAX ONE
Belt Drive
For long-lasting and carefree driving pleasure
This setup makes sure you get a great riding experience, and it's really reliable in tough conditions. It's got a belt drive, which is made up of a top-notch Gates crankset and a Gates belt. This is perfect for anyone who wants top-notch performance and durability.
Clean
The belt drive doesn't need any lubrication or chain cleaner, so it's a pretty clean option. You can just wash it with water when it gets really dirty. It's also really quiet and smooth.
Low maintenance
The durable polyurethane (PU) and carbon fibres are a strong combo, so they don't stretch much, wear easily, and last for up to 10,000 km.
Weatherproof
The belt is really weatherproof and resistant to the elements. The hub is also protected from dirt thanks to its enclosed design, which means less maintenance is needed.
For long-lasting and carefree driving pleasure
This setup makes sure you get a great riding experience, and it's really reliable in tough conditions. It's got a belt drive, which is made up of a top-notch Gates crankset and a Gates belt. This is perfect for anyone who wants top-notch performance and durability.
Low maintenance
The durable polyurethane (PU) and carbon fibres are a strong combo, so they don't stretch much, wear easily, and last for up to 10,000 km.
Weatherproof
The belt is really weatherproof and resistant to the elements. The hub is also protected from dirt thanks to its enclosed design, which means less maintenance is needed.
Clean
The belt drive doesn't need any lubrication or chain cleaner, so it's a pretty clean option. You can just wash it with water when it gets really dirty. It's also really quiet and smooth.
Technische Daten
Einheitsgröße |
mm |
|---|---|
| Sitzhöhe (A) | 490 - 850 |
| Top tube length (B) | 567 |
| Radstand (C) | 1075 |
| Gesamtlänge (D) | 1600 |
| Standover height (E) | 570 |
| Korblänge (F) | 350 innen |
| Korbbreite (G) | 405 innen |
| Tire width (H) | 30 -60 |
Bauteil |
Typ |
|---|---|
| Frameset | LAX 55 Frameset (Rahmen + Frontkorb aus 25CrMo4-Stahl, Gabel aus Aluminium 6061) |
| Bremse vorne | Shimano BR-MT420 4-Kolben |
| Bremse hinten | Shimano BR-MT410 2-Kolben |
| Schaltung | Shimano Alfine 8-fach |
| Vorbau | Aluminium schwarz |
| Sattelstütze | Aluminium schwarz |
| Griffe | Ergon GXR Circular |
| Lenker | Aluminium schwarz |
| Antrieb | Gates - Kurbel S301 55T, Riemenscheibe 22T, Riemen CDX 120T |
| Tretlager | Prestine T47 24mm |
| Steuersatz | Internal Routing IS52/28.6 IS52/40 |
| Sattel | Ergon ST10 Gel |
| Reifen | Schwalbe Big Apple 20x2.15 |
| Felgen | Kinlin MX8 |
| Nabe | Shimano |
| Fahrradständer | LAX Lite Double Kickstand |
| Pedale | Shimano PD-EF202 |
| Schutzbleche | Aluminium schwarz |
Technische Daten
Einheitsgröße |
mm |
|---|---|
| Sitzhöhe (A) | 490 - 850 |
| Top tube length (B) | 567 |
| Radstand (C) | 1075 |
| Gesamtlänge (D) | 1600 |
| Standover height (E) | 570 |
| Korblänge (F) | 350 innen |
| Korbbreite (G) | 405 innen |
| Tire width (H) | 30 -60 |
Bauteil |
Typ |
|---|---|
| Frameset | LAX 55 Frameset (Rahmen + Frontkorb aus 25CrMo4-Stahl, Gabel aus Aluminium 6061) |
| Bremse vorne | Shimano BR-MT420 4-Kolben |
| Bremse hinten | Shimano BR-MT410 2-Kolben |
| Schaltung | Shimano Alfine 8-fach |
| Vorbau | Aluminium schwarz |
| Sattelstütze | Aluminium schwarz |
| Griffe | Ergon GXR Circular |
| Lenker | Aluminium schwarz |
| Antrieb | Gates - Kurbel S301 55T, Riemenscheibe 22T, Riemen CDX 120T |
| Tretlager | Prestine T47 24mm |
| Steuersatz | Internal Routing IS52/28.6 IS52/40 |
| Sattel | Ergon ST10 Gel |
| Reifen | Schwalbe Big Apple 20x2.15 |
| Felgen | Kinlin MX8 |
| Nabe | Shimano |
| Fahrradständer | LAX Lite Double Kickstand |
| Pedale | Shimano PD-EF202 |
| Schutzbleche | Aluminium schwarz |

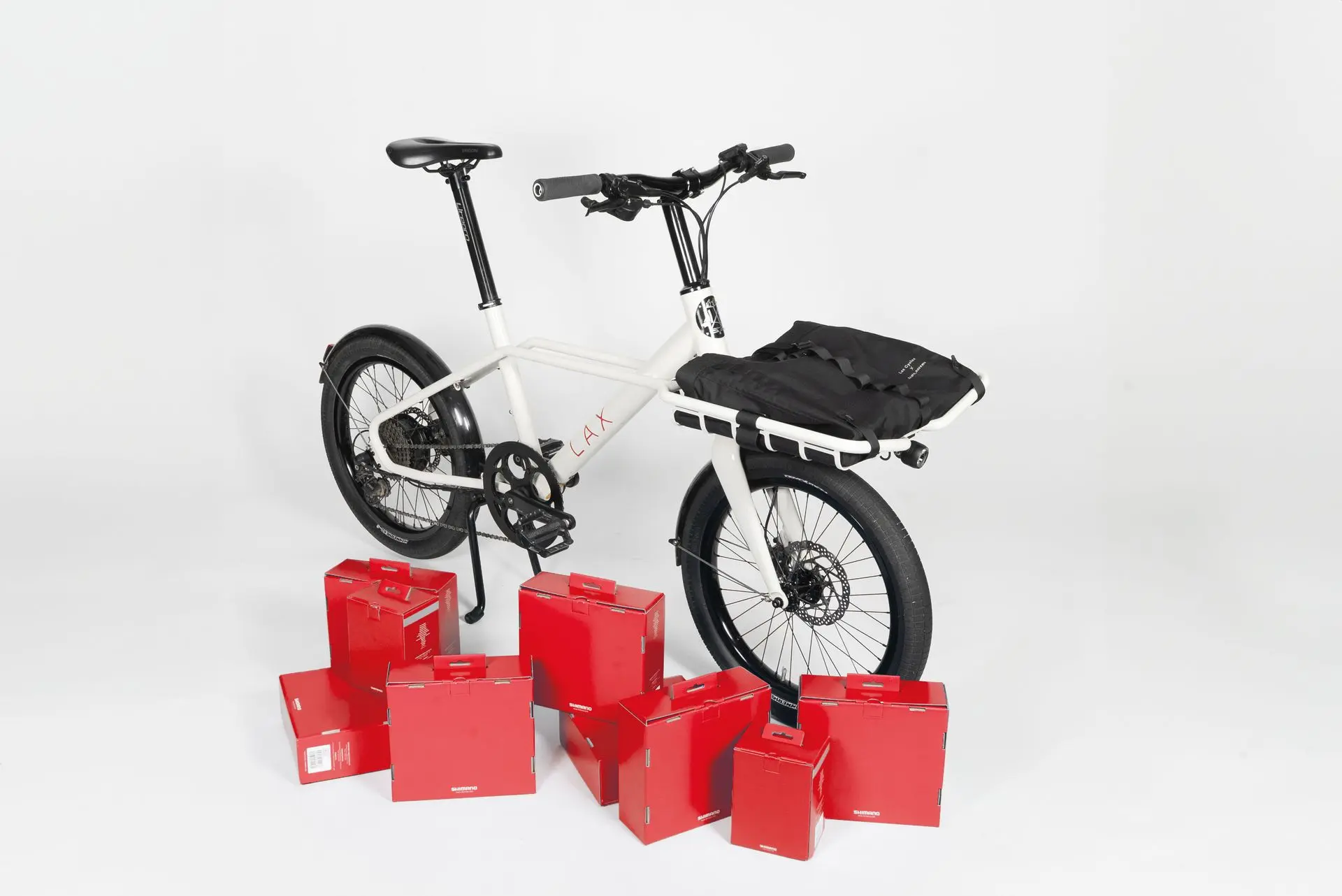

LAX Bag
Space miracle
The LAX Bag is great for expanding your storage space and making transportation easier. With a capacity of 55 liters, it's a total game changer for your daily cargo. A sturdy insert will be available soon to turn the bag into a LAX Doggy Bag, so your four-legged friends can also travel safely.
Material
The LAX Bag is made from recycled polyester, which is really tear-resistant and stable. It's PFC-free and water-repellent, but you can still fold it up and stow it away easily. It's lightweight, so you can fit loads of stuff in without adding extra weight.
Material
The LAX Bag is made from recycled polyester, which is really tear-resistant and stable. It's PFC-free and water-repellent, but you can still fold it up and stow it away easily. It's lightweight, so you can fit loads of stuff in without adding extra weight.
